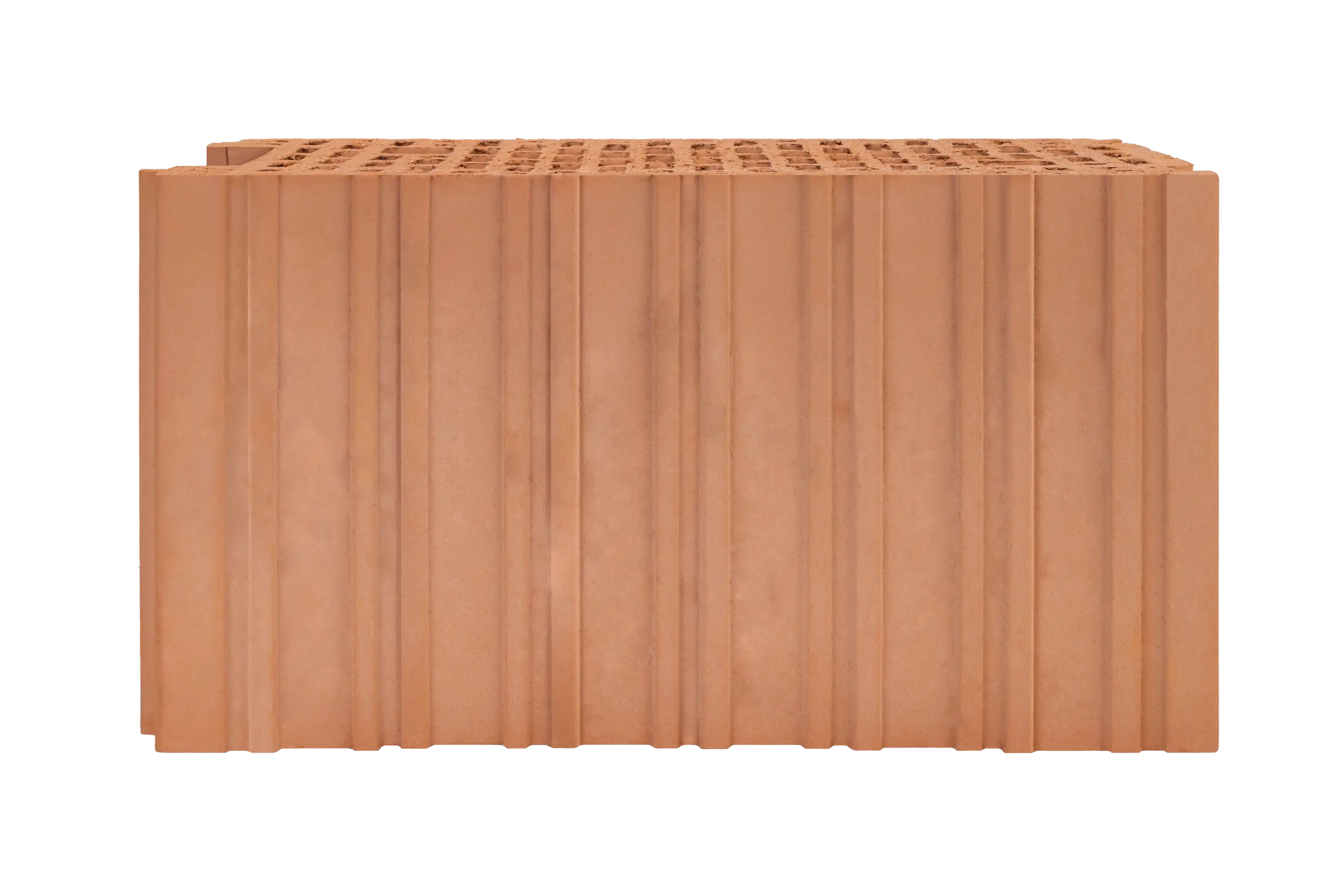

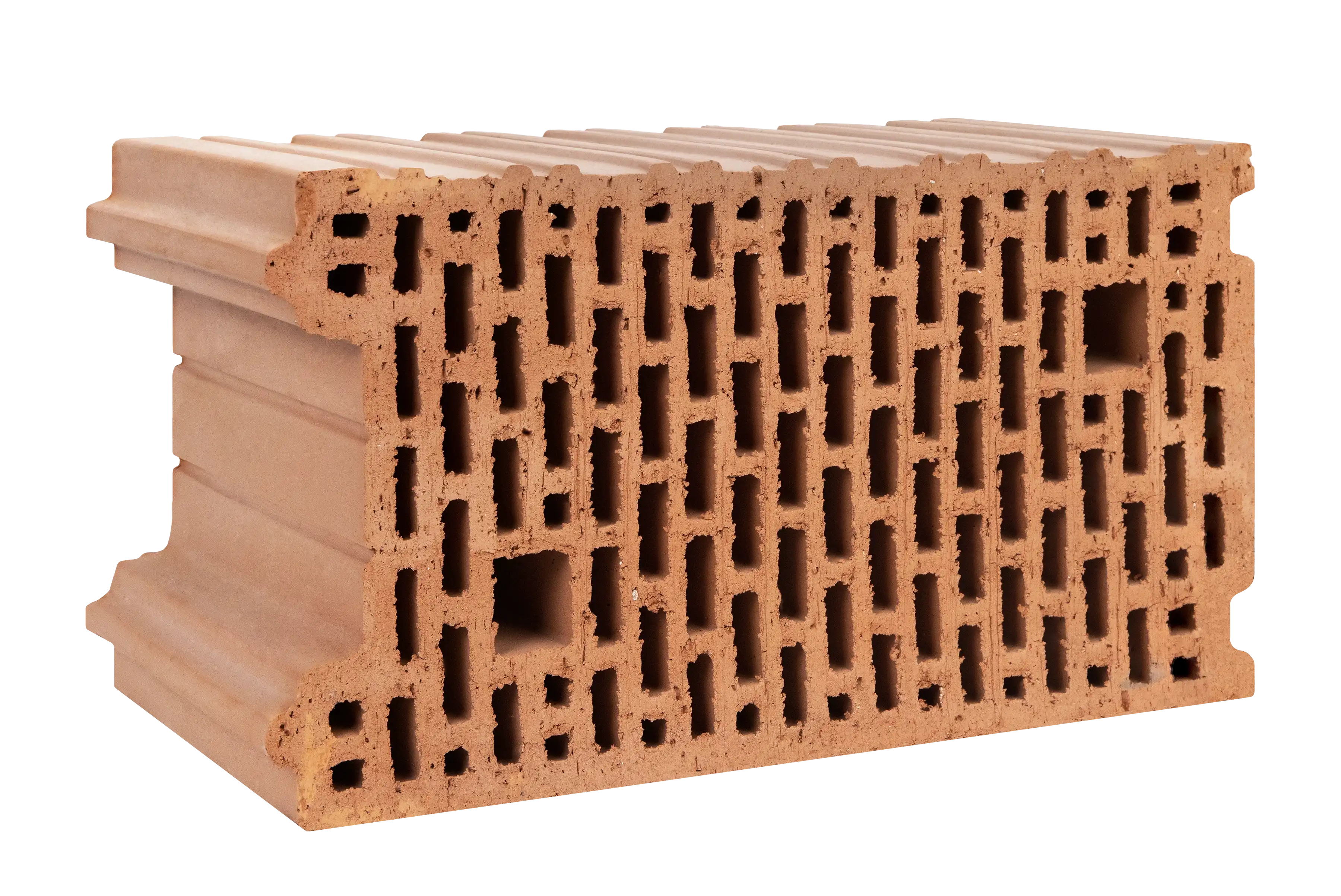

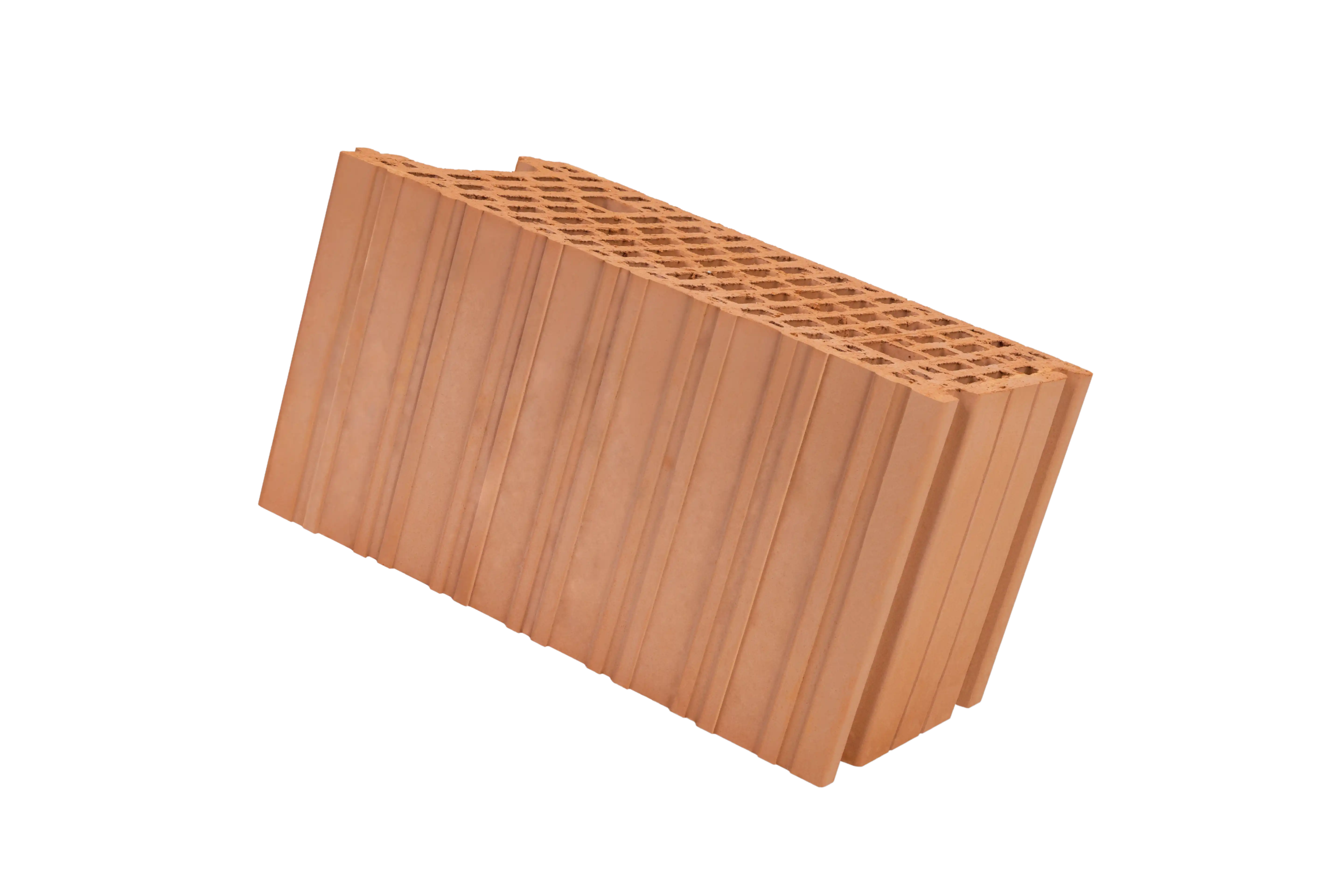

EVOCERAMIC 24 LM

Brick with mortar and guide elements

Size: 430/240/238 mm

Walls: internal/external; load-bearing

Wall thickness: 240mm

Ask for more details

Guidance elements

Guidance elements

  • It eases the work and increases the quality of the works by reducing the effort spent in the correct alignment of the bricks to obtain the desired flatness.

Reduced execution time

Reduced execution time

  • Increases productivity when building walls due to the large size of the brick, only 9 bricks are needed per m².

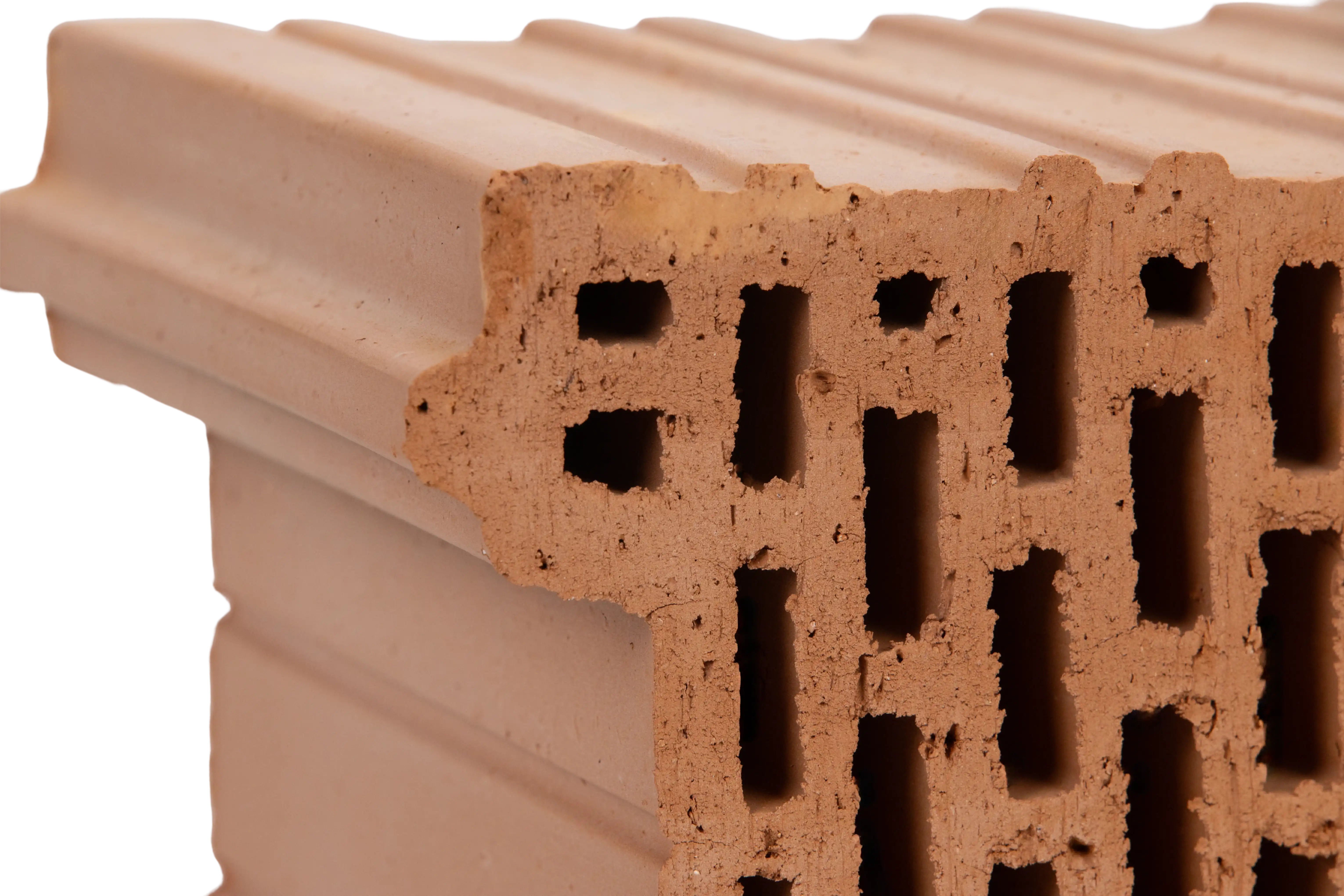

Improved thermal performance

Improved thermal performance

  • Heat losses are reduced due to the shoulders of the mortar pocket, which reduce heat transfer through the vertical mortar joints.

Bearing brick

Bearing brick

  • Intended for the construction of load-bearing structural walls. Having a high load capacity ensures the possibility of building load-bearing structural walls in traditional style, without the need to create load-bearing structures in frames.

Reduced consumption of mortar

Reduced consumption of mortar

  • Requires less mortar when building walls due to product configuration and mortar housing.
Technical Data
Download pdf
Sizes
430/240/238 mm
Average compressive strength (fb, med):
12.5 N/mm²
Hollows Volume:
< 50%
Thermal resistance (R):
0.98 m²K/W
Average brick weight
aprox. 19 kg
Bulk Density
aprox. 740 kg/ m³
Reaction to fire
Class A1
No. bricks/m³ of masonry:
39 pcs.
No. bricks/m² of masonry:
9 pcs
Mortar consumption/m³ of masonry:
94 l/m³
Labor time/m³ of masonry:
2.59 h/m³
Masonry Type:
load-bearing
Usage:
internal/external
No. bricks/pallet (1000x1200mm)
60 pcs./pallet
No. m³ of masonry/pallet
1.55 m³/pallet
