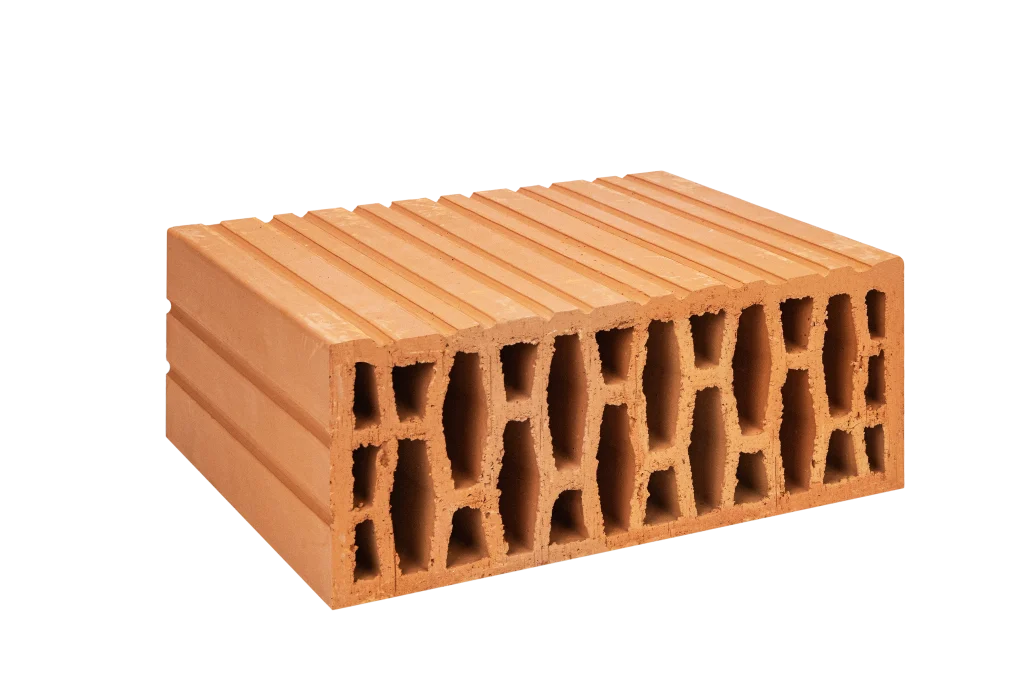

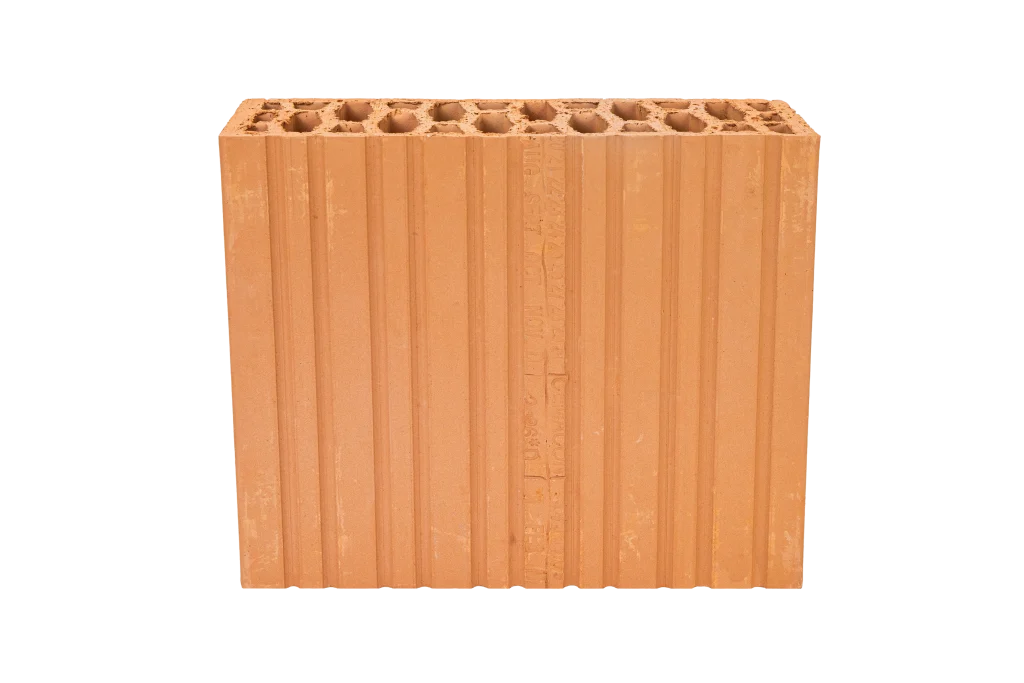

EVOCERAMIC 1/2 29

Save time and increase efficiency by using half bricks! Evoceramic 1/2 29 is designed for masonry built with Evoceramic 29 or 29 LM.

Dimensions

11.5 x 29 x 23.8 cm

Application

Exterior

Why choose EVOCERAMIC 1/2 29:

Reduces construction time and increases productivity when building walls, avoiding the time and material losses caused by cutting whole bricks.
Reduces heat losses thanks to the geometric configuration of the voids, which lengthens the heat-transfer path through the ceramic body.
Reduces mortar losses thanks to the geometric configuration of the voids, reducing mortar slipping from horizontal joints into the brick.

Dimensions115/290/238 mm

Thermal resistance ®1,49 m2K/W

Mean compressive strength (fb, mean)7.5 m²N/mm²

Void volume≤55

Thermal conductivity (λ10, dry, unit)0,195 W/mK

Average weight per brickapprox. 6 kg

Bulk densityapprox. 700 kg/ m³

Reaction to fireClass A1

Bricks/m³ of masonry110 pieces

Bricks/m² of masonry32 pieces

Mortar consumption/m³ of masonry99 litres/m³

Labour requirements/m³ of masonry3.19 hours/m³

Masonry typeLoad-bearing/Non-load-bearing

ApplicationExterior

Bricks/pallet (1000x1200mm)144 pieces /pallet

m³ of masonry/pallet1.305 m³/pallet

CEMACON precision-ground brick installation guide
