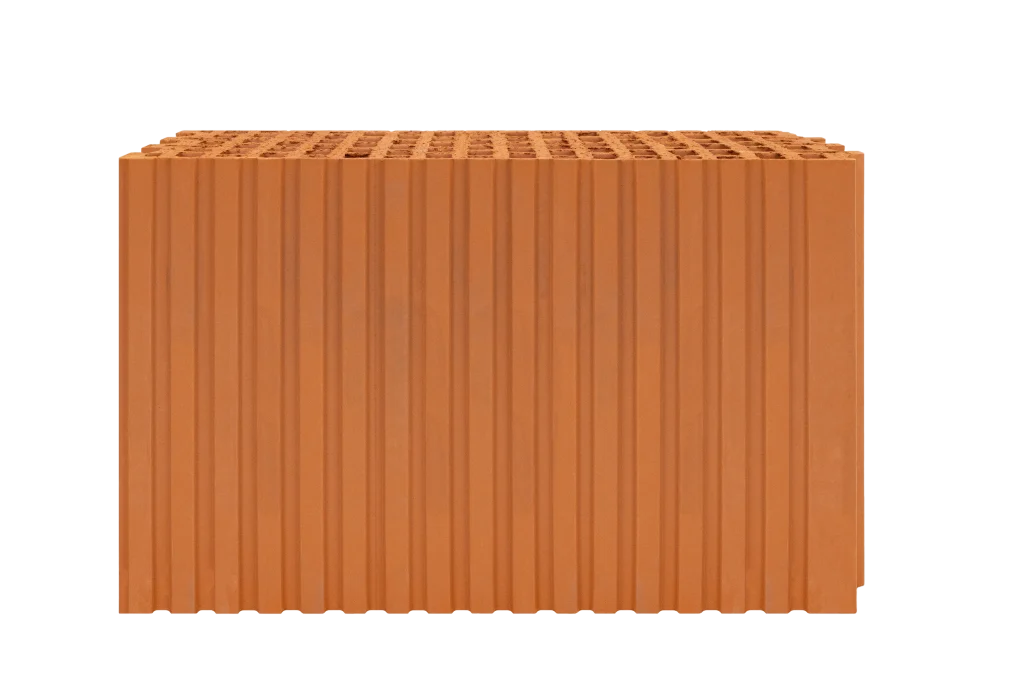

The Cemacon 25 tongue-and-groove brick is designed for 250 mm thick masonry. Evoceramic 25 NF can be used for interior/exterior walls. Tongue-and-groove brick

Dimensions
38 x 25 x 23.8 cm
Application
Exterior, Interior

Request a quote

Quote request for: EVOCERAMIC 25 NF

EVOCERAMIC 25 NF

Why choose Evoceramic 25 NF:

  • Makes work easier and improves the quality of the work by reducing the effort required to properly align the bricks to achieve the desired flatness.
  • Heat loss is reduced thanks to the tongue-and-groove guide, which minimizes heat transfer through vertical joints.
  • Increases productivity when building walls due to the large size of the bricks, requiring only 10 bricks per m².

Request a quote

Quote request for: EVOCERAMIC 25 NF

Technical data

Dimensions380/250/238 mm
Heat transfer resistance (R)0.882 m2K/W
Thermal conductivity (λ10,dry,unit)0.284 W/mK
Sound insulation index (Rw)47 dB
Mean compressive strength (fb, med)10 N/mm2
Void volume≤ 55%
Average weight per brickapprox. 17.9 kg
Bulk densityapprox. 770 kg/m³
Reaction to fireClass A1
Bricks per m³ of masonry42 pcs
Bricks per m² of masonry10 pcs
m³ of masonry/pallet1.71 m³/pallet
Mortar consumption per m³ of masonry60 liters/m³
Labor consumption per m³ of masonry2.2 h/m³
Wall typeNon-load-bearing
Used forinterior/exterior
No. of bricks/pallet (1000x1200mm)72 pieces/pallet

Technical documentation

Technical datasheet
Data sheet Download
Handling and storage instructions Download
Declaration of Performance / Conformity
Declaration of Performance Download
Other documents
Certificate of conformity of factory production control Download

CEMACON precision-ground brick installation guide
