EVOCERAMIC 15 NF

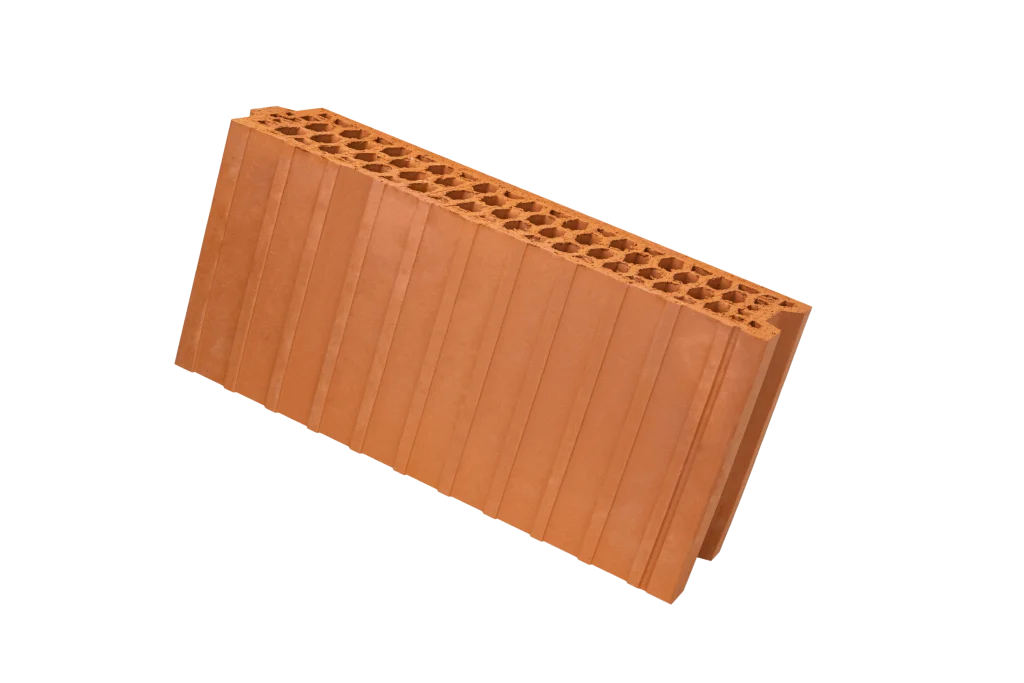

The Evoceramic 15 NF tongue-and-groove brick is designed for 150 mm thick masonry in non-load-bearing internal walls. Tongue-and-groove brick

Dimensions

50 x 15 x 23.8 cm

Application

Interior

Why choose EVOCERAMIC 15 NF:

Tongue-and-groove – Simplifies the work and improves the quality of the finished product by reducing the effort required to properly align the bricks to achieve the desired flatness.
Increases productivity when building walls due to the brick’s large dimensions, requiring only 8 bricks per m².
Mortar loss is reduced by eliminating the need to apply mortar to vertical joints and by the special geometric configuration of the cavities, which minimizes the slippage of mortar from the horizontal joints into the interior of the brick.

Dimensions500/150/238 mm

Thermal conductivity (λ10,dry,unit)0.288 W/mK

Mean compressive strength (fb, med)7.5 N/mm2

Void volume≤ 55%

Average weight per brickapprox. 15.4 kg

Bulk densityapprox. 800 kg/m³

Reaction to fireClass A1

Bricks per m³ of masonry53 pcs

Bricks per m² of masonry8 pcs

Mortar consumption per m³ of masonry58 liters/m³

Labor consumption per m³ of masonry2.45 h/m³

Wall typeNon-load-bearing

Used forinterior

No. of bricks/pallet (1000x1200mm)72 pieces/pallet

m³ of masonry/pallet1.35 m³/pallet
